MULTISTAGE BATTERY CHARGER
C (battery charger) Series
HT-C-60-12; HT-C-30-24
Design feature
(1) PFC function.
(2) Sleeping mode function.
(3) Wide input voltage (universal) range operation.
(4) LCD remote control / APP display.
(5) Battery temperature sensor function.
(6) Adjustable charging mode switch for different lead-acid battery types.
(7) Prevent the battery overcharging, and extend the battery life.
(8) For recovery of the aging (sulfated) battery.
(1) PFC function.
(2) Sleeping mode function.
(3) Wide input voltage (universal) range operation.
(4) LCD remote control / APP display.
(5) Battery temperature sensor function.
(6) Adjustable charging mode switch for different lead-acid battery types.
(7) Prevent the battery overcharging, and extend the battery life.
(8) For recovery of the aging (sulfated) battery.
Wave form
/chargeing-volt-graph.png)
Socket type
/(E)HT-C-15L-3.png)

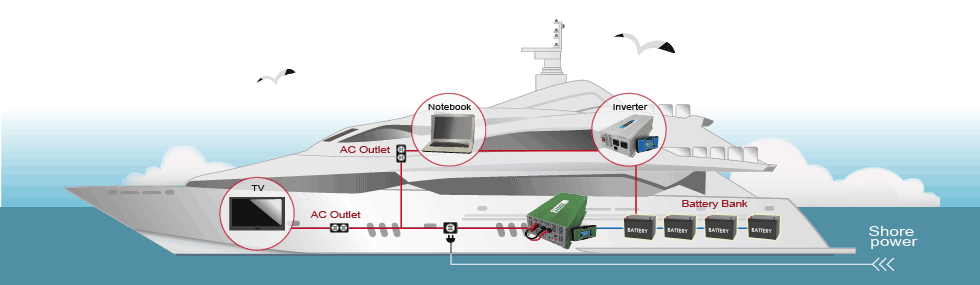

Suitable for
/(E)HT-C-60-3.png)
Model No.:
HT-C-60-12
INPUT
Voltage range:
100~240Vac
Frequency range:
50/60Hz
Efficiency:
≧85%
Power factor:
1.0 at full load (±5%)
Input socket:
IEC plug
OUTPUT
Mode Selection:
Mode 1
Mode 2 *1
Bulk Stage:
14.4V / 60A
13.5V / 60A
Absorption stage:
14.4V / 60A max.
13.5V / 60A
Float stage:
13.5V / 5A max.
13.5V / 60A
Aging (sulfated) battery:
When the battery <9V.
/
14.4V / 5A
/
Recommended battery capacity:
180 ~600Ah (12V)
Leakage current from battery:
<1mA
Sleeping Mode Function:
YES (5A current output only)
/
PROTECTION
Over Temperature:
55℃±5℃
Output termimal reverse:
By Fuse
Over load:
Yes
Output short circuit:
Yes
Microprocessor check:
Yes
ENVIRONMENT
Working temp.:
-15℃~ +45℃
Working humidity:
20%~90%RH non-condensing
Storage temp., Humidity:
-30℃~ +70℃/-22℉~ +158℉, 10~95% RH
Temp. coefficient:
±0.05%℃ (0~55℃)
OTHERS
Remote control:
YES
Dimension (LxWxH):
333x179x90 mm
Net weight:
3.4kgs
*1. Mode 2: DON’T charge the battery!
*2. The above spec. ±0.5V for 12V spec.; ±1.0V for 24V spec.; Amp. ±10% is acceptable.
*3. Note: Specifications subject to change without notice.
*2. The above spec. ±0.5V for 12V spec.; ±1.0V for 24V spec.; Amp. ±10% is acceptable.
*3. Note: Specifications subject to change without notice.
Model No.:
HT-C-30-24
INPUT
Voltage range:
100~240Vac
Frequency range:
50/60Hz
Efficiency:
≧85%
Power factor:
1.0 at full load (±5%)
Input socket:
IEC plug
OUTPUT
Mode Selection:
Mode 1
Mode 2 *1
Bulk Stage:
28.8V / 30A
27V / 30A
Absorption stage:
28.8V / 30A max.
27V / 30A
Float stage:
27.0V / 2.5A max.
27V / 30A
Aging (sulfated) battery:
When the battery <18V.
/
28.8V / 2.5A
/
Recommended battery capacity:
90 ~ 300Ah (24V)
Leakage current from battery:
<1mA
Sleeping Mode Function:
YES ( 2.5A current output only)
/
PROTECTION
Over Temperature:
55℃±5℃
Output termimal reverse:
By Fuse
Over load:
Yes
Output short circuit:
Yes
Microprocessor check:
Yes
ENVIRONMENT
Working temp.:
-15℃~ +45℃
Working humidity:
20%~90%RH non-condensing
Storage temp., Humidity:
-30℃~ +70℃/-22℉~ +158℉, 10~95% RH
Temp. coefficient:
±0.05%℃ (0~55℃)
OTHERS
Remote control:
YES
Dimension (LxWxH):
333x179x90 mm
Net weight:
3.4 kgs
*1. Mode 2: DON’T charge the battery!
*2. The above spec. ±0.5V for 12V spec.; ±1.0V for 24V spec.; Amp. ±10% is acceptable.
*3. Note: Specifications subject to change without notice.
*2. The above spec. ±0.5V for 12V spec.; ±1.0V for 24V spec.; Amp. ±10% is acceptable.
*3. Note: Specifications subject to change without notice.
