DC TO AC POWER INVERTER
Design feature
(1) Pure sine wave output (<2% THD).
(2) Input & Output fully isolation design.
(3) High efficiency 87%~90%.
(4) Internal and external heat sinks.
(5) Thermal control fan.
(6) Frequency 50/60Hz selective switch.
(7) Re-start function.
(8) Complete protection design.

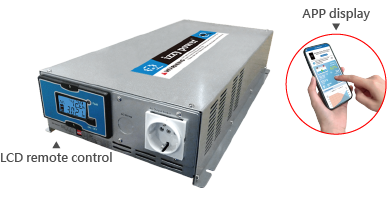

(9) Movable front LCD display panel.
(10) APP display – option.
(11) Green power function.
(12) Bypass function – optional.
(13) Hard wiring design.
(1) Pure sine wave output (<2% THD).
(2) Input & Output fully isolation design.
(3) High efficiency 87%~90%.
(4) Internal and external heat sinks.
(5) Thermal control fan.
(6) Frequency 50/60Hz selective switch.
(7) Re-start function.
(8) Complete protection design.
(9) Movable front LCD display panel.
(10) APP display – option.
(11) Green power function.
(12) Bypass function – optional.
(13) Hard wiring design.
Wave form
/(E)PRODUCT-3-3.png)
Pure Sine Wave
Socket type
/(E)HT-S-1800-2.png)
Suitable for
/(E)HT-S-1800-4.png)
Model No.:
HT-S-1800-12
HT-S-1800-24
HT-S-1800-48
OUTPUT
AC Voltage:
100VAC / 120VAC / 230VAC
Continuous Power:
1800W
Surge Power:
3600W
Waveform:
Pure Sine Wave
Frequency:
50/60Hz±3%
AC regulation:
±8%(100V:±10%)
Receptacles:
1pc
INPUT
DC Current:
180A (12V)
90A (24V)
45A (48V)
DC no load current normal mode.:
1.0A (12V)
0.5A (24V)
0.25A (48V)
DC no load current under power saving mode.:
0.12A (12V)
0.06A (24V)
0.03A (48V)
DC Voltage:
12V
24V
48V
Voltage Range:
10-16VDC (12V)
20-32VDC (24V)
40-61VDC (48V)
Efficiency (Typ.):
>85%
DC Connector:
clip cable x 1pc
PROTECTION
Battery low alarm:
10.5±0.5V (12V)
21±1V (24V)
42±2V (48V)
Battery low shut down:
10±0.5V (12V)
20±1V (24V)
40±2V (48V)
Over voltage:
16±0.5V (12V)
32±1V (24V)
61±2V (48V)
Over Temperature:
55℃±5℃
Short Circuit Protection:
Shut-off
Battery polarity:
Fuse burn out
Over load:
Re-start 1 time. Shut down if failed
ENVIRONMENT
Working temp.:
-15℃~ +45℃
Working humidity:
20%~90%RH non-condensing
Storage temp., Humidity:
-30℃~ +70℃/-22℉~ +158℉, 10~95% RH
Temp. coefficient:
±0.05%℃ (0~55℃)
SAFETY
EMI:
Compliance to EN55022 class B, 72/245/CEE, 95/54/CE
EMS:
Compliance to EN61000-4-2, 3
LVD:
Compliance to EN60905
UL:
UL458
OTHERS
Dimension (LxWxH):
570x274x105 mm
Net weight:
8.3 kgs
Gross Weight (With Cable):
9.0 kgs
Optional
EXTERA FUNTION
Bypass function:
Yes
INPUT
DC no load current under normal mode.:
1.0A (12V)
0.5A (24V)
0.25A (48V)
DC no load current under power saving mode.:
0.4A (12V)
0.2A (24V)
0.1A (48V)
INVERTER
Low AC input volt transfer to inverter mode.:
90Vac±5% or 180Vac±5%
Low AC input volt recovery to AC mode.:
95Vac±5% or 190Vac±5%
High AC input volt transfer to inverter mode.:
132Vac±5% or 265Vac±5%
High AC input volt recoveryto AC mode.:
125Vac±5% or 250Vac±5%
CONNECTOR
Input AC terminal:
Yes, hard wiring.
Output AC terminal:
Yes, hard wiring.
Receptacles:
No
※ Note: Specifications subject to change without notice.
