DC TO AC POWER INVERTER
Design feature
(1) Pure sine wave output (<2% THD).
(2) Output fully isolation design.
(3) High efficiency 87%~90%.
(4) Internal and external heat sinks.
(5) Thermal control fan.
(6) Frequency 50/60Hz selective switch.
(7) Re-start function.
(8) Complete protection design.
(1) Pure sine wave output (<2% THD).
(2) Output fully isolation design.
(3) High efficiency 87%~90%.
(4) Internal and external heat sinks.
(5) Thermal control fan.
(6) Frequency 50/60Hz selective switch.
(7) Re-start function.
(8) Complete protection design.
Wave form
/(E)PRODUCT-3-3.png)
Pure Sine Wave
Socket type
/(E)HT-S-300-2.png)

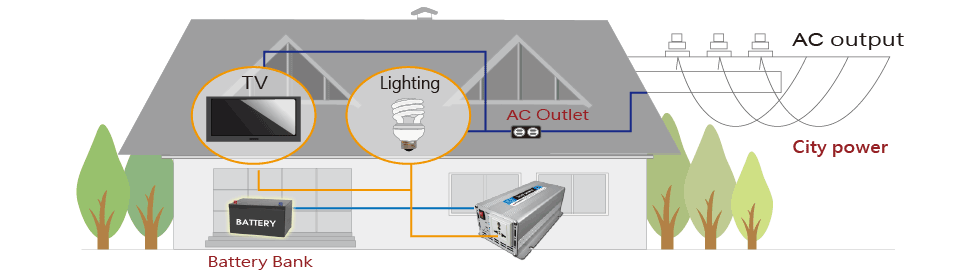

Suitable for
/(E)HT-S-300-3.png)
Model No.:
HT-S-300-12
HT-S-300-24
HT-S-300-48
OUTPUT
Wave form:
Pure Sine Wave
AC voltage:
100V/120V/230V
Continuous Power:
300W
Surge power:
600W
Frequency:
50/60Hz±3%
AC regulation:
±8%(100V:±10%)
Receptacles:
2pcs for type2; 1pc for type3, 4, 5, 6
LED Indicator:
Green LED for power on; Red LED for power failuer status
INPUT
DC current:
30A (12V)
15A (24V)
7.5A (48V)
No load current draw:
0.6A (12V)
0.3A (24V)
0.2A (48V)
DC voltage:
12V
24V
48V
Voltage range:
9.5~16VDC (12V)
19~32VDC (24V)
38~61VDC (48V)
Efficiency:
>85%
DC connector:
clip cable x 1pc
PROTECTION
Bat. Low alarm:
10±0.5V (12V)
20±1V (24V)
40±2V (48V)
Bat. Low shutdown:
9.5±0.5V (12V)
19±1V (24V)
38±2V (48V)
Over voltage:
16±0.5V (12V)
32±1V (24V)
61±2V (48V)
Over Temperature:
55℃±5℃
Short circuit protection:
Shut-off
Bat. Polarity Reverse:
Fuse burn out
Over load:
Re-start 1 time. Shut down if failed
ENVIRONMENT
Working temp.:
-15℃~ +45℃
Working humidity:
20%~90%RH non-condensing
Storage temp., Humidity:
-30℃~ +70℃/-22℉~ +158℉, 10~95% RH
Temp. coefficient:
±0.05%℃ (0~55℃)
OTHERS
Dimension (LxWxH):
260x129x82.5 mm
Net weight:
2.0 kgs
※ Note: Specifications subject to change without notice.
