DC TO AC POWER INVERTER
Design feature
(1) Internal heat sink.
(2) With USB power port (5V/3A max.) function.
(3) 9cm thermal control fan to lower operation temperature.

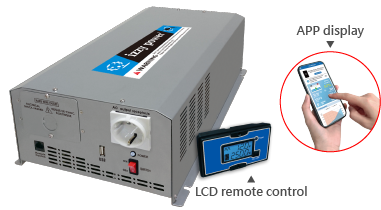

(4) APP display/ LCD remote control (option).
(5) Hard wiring design.
(6) Re-start function.
(7) Complete protection design.
(8) Compact size design.
(9) High peak power.
(1) Internal heat sink.
(2) With USB power port (5V/3A max.) function.
(3) 9cm thermal control fan to lower operation temperature.
(4) APP display/ LCD remote control (option).
(5) Hard wiring design.
(6) Re-start function.
(7) Complete protection design.
(8) Compact size design.
(9) High peak power.

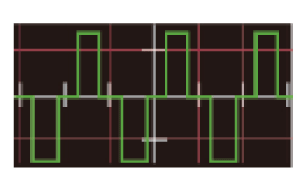

Wave form
PRODUCT-3-2.png)
Modified Sine Wave
Socket type
/(E)HT-E-1000-2.png)

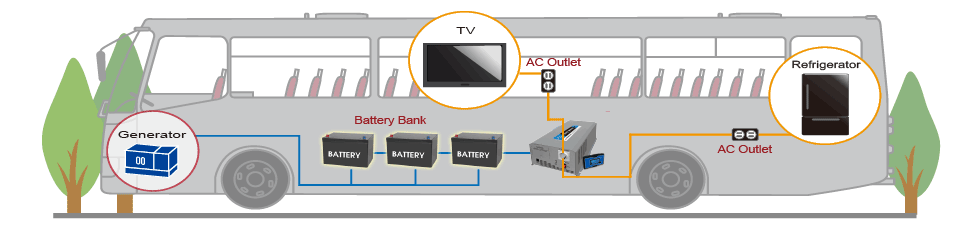

Suitable for
/(E)HT-M-2500-3.png)
Model No.:
HT-M-2500-12
HT-M-2500-24
OUTPUT
Wave form:
Modified Sine Wave
AC voltage:
100V/120V/230V
Continuous Power:
2500W
Surge power:
5000W
Frequency:
50/60Hz±3%
AC regulation:
±8%(100V:±10%)
USB port:
3A/5V max.
INPUT
No load current draw:
0.4A (12V)
0.2A (24V)
DC voltage:
12V
24V
Voltage range:
10~16VDC (12V)
20~32VDC (24V)
Efficiency:
85%
DC connector:
Cable x 1pc
PROTECTION
Bat. Low alarm:
10.5±0.5V (12V)
21±1V (24V)
Bat. Low shutdown:
10±0.5V (12V)
20±1V (24V)
Over voltage:
16±0.5V (12V)
32±1V (24V)
Over Temperature:
55℃±5℃
Short circuit protection:
Shut-off
Bat. Polarity Reverse:
Fuse burn out
Over load:
Shut down if re-try is still failed
Accessory:
Remote control (optional)
ENVIRONMENT
Working temp.:
-15℃~ +45℃
Working humidity:
20%~90%RH non-condensing
Storage temp., Humidity:
-30℃~ +70℃/-22℉~ +158℉, 10~95% RH
Temp. coefficient:
±0.05%℃ (0~55℃)
SAFETY & EMC
EMI conduction & radiation:
Compliance to EN55022
EMS immunity:
Compliance to EN55024, EN/IEC 61000-4-2, EN/IEC 61000-4-3, EN/IEC 61000-4-8
LVD:
Compliance to EN60950-1
OTHERS
Dimension (LxWxH):
517x265x132 mm
Net weight:
8.90 kgs
※ Note: Specifications subject to change without notice.
