DC TO AC POWER INVERTER
Design feature
(1) Cost-saving design.
(2) Compact and dexterous dimension design.
(3) External heat sink.

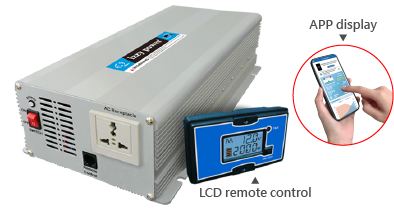

(4) APP display/ LCD remote control (option).
(5) Re-start function.
(6) Complete protection design.
(7) High peak power.
(1) Cost-saving design.
(2) Compact and dexterous dimension design.
(3) External heat sink.
(4) APP display/ LCD remote control (option).
(5) Re-start function.
(6) Complete protection design.
(7) High peak power.
Wave form
/(E)PRODUCT-3-2.png)
Modified Sine Wave
Socket type
/(E)HT-E-1000-2.png)

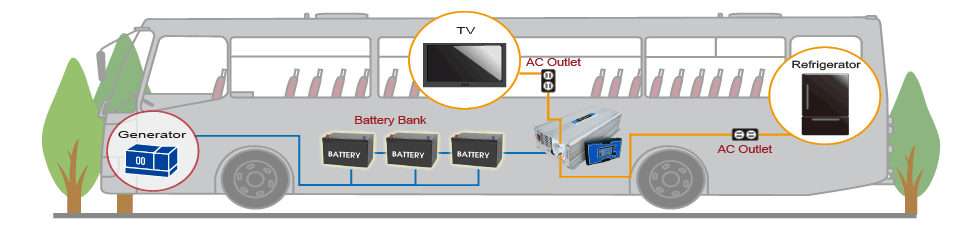

Suitable for
/(E)HT-M-2000-3.png)
Model No.:
HT-M-2000-12
HT-M-2000-24
OUTPUT
Wave form:
Modified Sine Wave
AC voltage:
100V/120V/230V
Continuous Power:
2000W
Surge power:
4000W
Frequency:
50/60Hz±3%
AC regulation:
±8%(100V:±10%)
INPUT
No load current draw:
0.4A (12V)
0.2A (24V)
DC voltage:
12V
24V
Voltage range:
10~16VDC (12V)
20~32VDC (24V)
Efficiency:
85%
DC connector:
Cable x 1pc
PROTECTION
Bat. Low alarm:
10.5±0.5V (12V)
21±1V (24V)
Bat. Low shutdown:
10±0.5V (12V)
20±1V (24V)
Over voltage:
16±0.5V (12V)
32±1V (24V)
Over Temperature:
55℃±5℃
Short circuit protection:
Shut-off
Bat. Polarity Reverse:
Fuse burn out
Over load:
Shut down if re-try is still failed
Accessory:
Remote control (optional)
ENVIRONMENT
Working temp.:
-15℃~ +45℃
Working humidity:
20%~90%RH non-condensing
Storage temp., Humidity:
-30℃~ +70℃/-22℉~ +158℉, 10~95% RH
Temp. coefficient:
±0.05%℃ (0~55℃)
SAFETY & EMC
EMI conduction & radiation:
Compliance to EN55022
EMS immunity:
Compliance to EN55024, EN/IEC 61000-4-2, EN/IEC 61000-4-3, EN/IEC 61000-4-8
LVD:
Compliance to EN60950-1
OTHERS
Dimension (LxWxH):
435x179x88.5 mm
Net weight:
3.70 kgs
※ Note: Specifications subject to change without notice.
