DC TO AC POWER INVERTER
Design feature
(1) Compact size and light weight.
(2) Re-start function.
(3) Complete protection design.
(4) With USB power port. (5V / 3A max.)
(5) 6cm thermal control fan.
(1) Compact size and light weight.
(2) Re-start function.
(3) Complete protection design.
(4) With USB power port. (5V / 3A max.)
(5) 6cm thermal control fan.
Wave form
/(E)PRODUCT-3-2.png)
Modified Sine Wave
Socket type
/(E)HT-E-600-2.png)

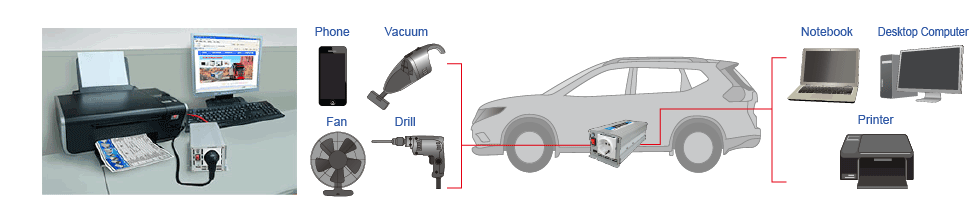

Suitable for
/(E)HT-M-600-3.png)
Model No.:
HT-M-600-12
HT-M-600-24
OUTPUT
Wave form:
Modified Sine Wave
AC voltage:
100V/120V/230V
Output power:
600W
Surge power:
1200W
Frequency:
50/60Hz±3%
AC regulation:
±8%(100V:±10%)
USB port:
3A/5V max.
INPUT
No load current draw:
0.5A (12V)
0.25A (24V)
DC voltage:
12V
24V
Voltage range:
10~16VDC (12V)
20~32VDC (24V)
Efficiency:
85%
DC connector:
cable x1
PROTECTION
Bat. Low alarm:
10.5±0.5V (12V)
21±1V (24V)
Bat. Low shutdown:
10±0.5V (12V)
20±1V (24V)
Over voltage:
16±0.5V (12V)
32±1V (24V)
Over Temperature:
55℃±5℃
Short circuit protection:
Shut-off
Bat. Polarity Reverse:
Fuse burn out
Over load:
Shut down if re-try is still failed
ENVIRONMENT
Working temp.:
-15℃~ +45℃
Working humidity:
20%~90%RH non-condensing
Storage temp., Humidity:
-30℃~ +70℃/-22℉~ +158℉, 10~95% RH
Temp. coefficient:
±0.05%℃ (0~55℃)
SAFETY & EMC
EMI:
Compliance to EN55022
EMS:
Compliance to EN55024, EN/IEC 61000-4-2EN/IEC 61000-4-3, EN/IEC 61000-4-8
LVD:
Compliance to EN60950-1
OTHERS
Dimension (LxWxH):
230x95x75mm
Net weight:
1.4 kg
※ Note: Specifications subject to change without notice.
