DC TO AC POWER INVERTER
Design feature
(1) With USB power port (3A/5V) function.
(2) Compact size and light weight.
(3) Complete protection design.
(1) With USB power port (3A/5V) function.
(2) Compact size and light weight.
(3) Complete protection design.
Wave form
/(E)PRODUCT-3-2.png)
Modified Sine Wave
Socket type
/(E)HT-E-150-2.png)

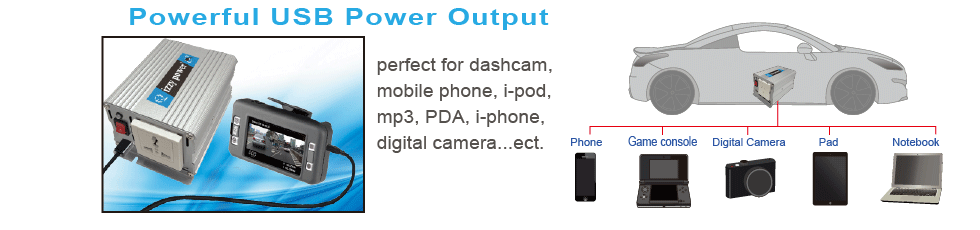

Suitable for
/(E)HT-M-350-3.png)
Model No.:
HT-M-350-12
HT-M-350-24
OUTPUT
Wave form:
Modified Sine Wave
AC voltage:
100V/120V/230V
Output power:
350W
Surge power:
700W
Frequency:
50/60Hz±3%
AC regulation:
±8%(100V:±10%)
USB port:
3A/5V max.
INPUT
No load current draw:
0.4A (12V)
0.2A (24V)
DC voltage:
12V
24V
Voltage range:
9.5~16VDC (12V)
19~32VDC (24V)
Efficiency:
85%
DC connector:
clip cable + Cigar plug
PROTECTION
Bat. Low alarm:
10±0.5V (12V)
21±1V (24V)
Bat. Low shutdown:
9.5±0.5V (12V)
19±1V (24V)
Over voltage:
16±0.5V (12V)
32±1V (24V)
Over Temperature:
55℃±5℃
Short circuit protection:
Shut-off
Bat. Polarity Reverse:
Fuse burn out
Over load:
Shut down if re-try is still failed
ENVIRONMENT
Working temp.:
-15℃~ +45℃
Working humidity:
20%~90%RH non-condensing
Storage temp., Humidity:
-30℃~ +70℃/-22℉~ +158℉, 10~95% RH
Temp. coefficient:
±0.05%℃ (0~55℃)
OTHERS
Dimension (LxWxH):
175x95x75 mm
Net weight:
0.76 kgs
※ Note: Specifications subject to change without notice.
