HT-SK-S1000
SOLAR POWER KIT
SK (solar power kit) Series
HT-SK-S1000
Please
e-mail
us if you need the manual file.
HT-SK-S1000 Datasheet
+ Add to Inquiry
Inquire List (
0
)
Feature
Specification
Design feature

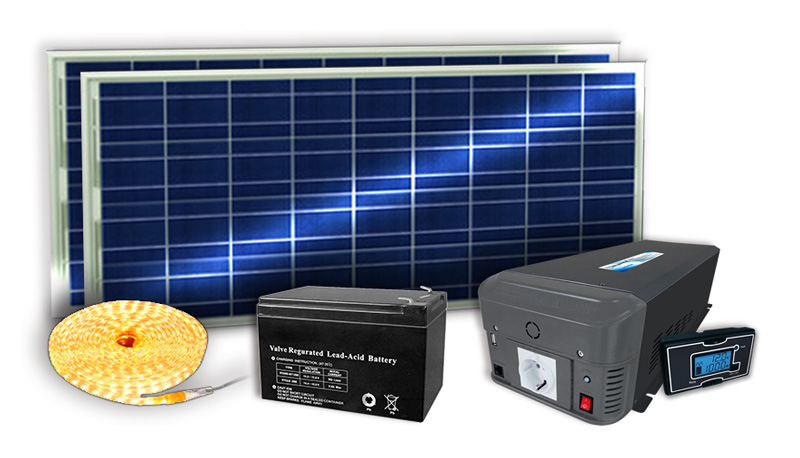

(1) 150W(+/-35W) solar panel x2.
(2) 1000W sine wave solar inverter.
(3) 20A PWM solar charger controller.
(4) 2A/5V USB power port.
(5) LCD display.
(6) 100AH lead-acid battery – optional.
(7) Lighting – optional.
Wave form
Pure Sine Wave
Multistage Charging Design
Inverter socket type
Suitable for
Model No.:
SK-S1000
INVERTER
DC input volt:
12V
Volt range:
10-16VDC
Surge power:
2000W
Continuous power:
1000W
Wave form:
Pure sine wave
THD:
<2%
AC voltage:
100V / 120V / 230V
Frequency:
50/60Hz ±3%
AC Regulation:
±8%(100V:±10%)
DC no load current:
0.9A
Bat. Low alarm:
10.5±0.5V
Bat. Low shutdown:
10±0.5V
Over voltage:
16±0.5V
Bat. Polarity Reverse:
Fuse burn out
USB port:
5V / 2A
Efficiency:
85%
Connector
Output AC Terminal:
Yes, hard wiring.
Output Receptacles:
Yes
SOLAR CHARGER CONTROLLER
Rated charge current:
20A(PWM)
Rated load current:
20A(PWM)
Work voltage:
12V (<25V) AUTO
Over load, short circuit protection:
1.25 rated load current 60sec, 1.5 rated loads current 5sec, over load protection action. ≥3 Rated load current short circuit protection action.
Self-consumption current:
≤ 6mA
Charge circuit voltage drop:
≤ 0.26V
Load circuit voltage drop:
≤ 0.15V
Work temperature:
Industry stage: -35°C to +55°C; Commercial stage: -5°C to +50°C
Over voltage protection:
17V
Boost charge voltage:
14.6V (keep 10min) (only used when overdischarging)
Direct charge voltage:
14.4V (keep 10min)
Float charge voltage:
13.6V
Charge return voltage:
13.2V
Temperature compensation:
-5mv/°C/2v(Boost charge, Direct charge,Float charge, charge return voltage)
Lower voltage indicate:
12.0V
Over discharge voltage:
11.1V (no load) - modified voltage by discharge rate of battery
Over discharge return voltage:
13.1V
Over-discharge pressed return voltage:
12.4V
Control mode:
PWM charge mode; modified discharge voltage by the discharge rate
PROTECTION
Over load protection:
Yes
Over temp protection:
Yes
Inverter input reverse protection:
Fuse blow
Inverter output short circuit protection:
Shut-off
Over temperture:
55℃±5℃
ENVIRONMENT
Working temp.:
-15℃~45℃
Storage temp.:
-25℃~70℃
Working humidity:
20%~90% RH non-condensing
Storage humidity:
-22℉~+158℉, 10~95% RH
Temp. Coefficient:
±0.05%℃ (0~55℃)
OTHERS
Dimension (LxWxH):
520*215*130 mm
Net weight:
6.9 kgs
Model No.:
150W Solar Panel (±35W)
ELECTRICAL PERFORMANCE @ STC *¹
Maximum power Pmax[Wp]:
150W
Power tolerance *²:
±3%
Solar cell type:
Multi-crystalline 6" ( 156 x 156 mm)
Number of solar cells:
36 (6 x 6)
Maximum power voltage Vmp[V]:
18.31
Maximum power current Imp[A]:
8.19
Open circuit voltage Voc[V]:
22.71
Short circuit current Isc Isc[A]:
8.81
Module efficiency [%]:
15.4%
Quantity per package:
2pcs
*1 STC: Irradiance level 1000 W/m²; spectral AM1.5; temperature 25°C.
*2 Power tolerance can be adjusted upon requests.
*3 NOCT: 46±2°C.
MECHANICAL CHARACTERISTICS OF EACH PANEL
Dimension(mm):
1474X660X35
Weight(kg):
12
Junction box:
IP 65 / IP 67 with 2 bypass diodes ; cables 1M/φ= 4mm²
Series fuse rating Inside Junction box:
15A
WORKING CONDITION
Maximum system voltage:
600V, 1000V
Operating temperature:
-40 ~ 85°C
Maximum static load:
Snow load 5400pa; Wind load 2400pa
TEMPERATURE COEFFICIENT
Isc temperature coefficient α(%/°C):
+0.08
Voc temperature coefficient β(%/°C):
-0.34
Pmax temperature coefficient (%/°C):
-0.43
※ Note: Specifications subject to change without notice.
