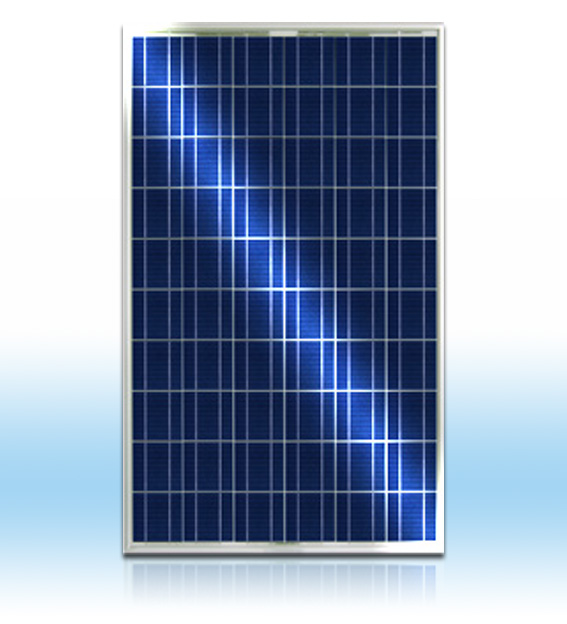

SOLAR MODULE
Design feature
(1) The most reliable quality-Made in Taiwan.
(2) High conversion efficiency.
(3) Effectively minimize the power drop by the shade.
(4) High-level protection for severe environment.
(5) High quality glass provides for less reflection of incoming sunrays.
(6) 10 year 90% minimum output warranty.
(1) The most reliable quality-Made in Taiwan.
(2) High conversion efficiency.
(3) Effectively minimize the power drop by the shade.
(4) High-level protection for severe environment.
(5) High quality glass provides for less reflection of incoming sunrays.
(6) 10 year 90% minimum output warranty.
Certifcate
/(E)HT-PV-135-1.png)

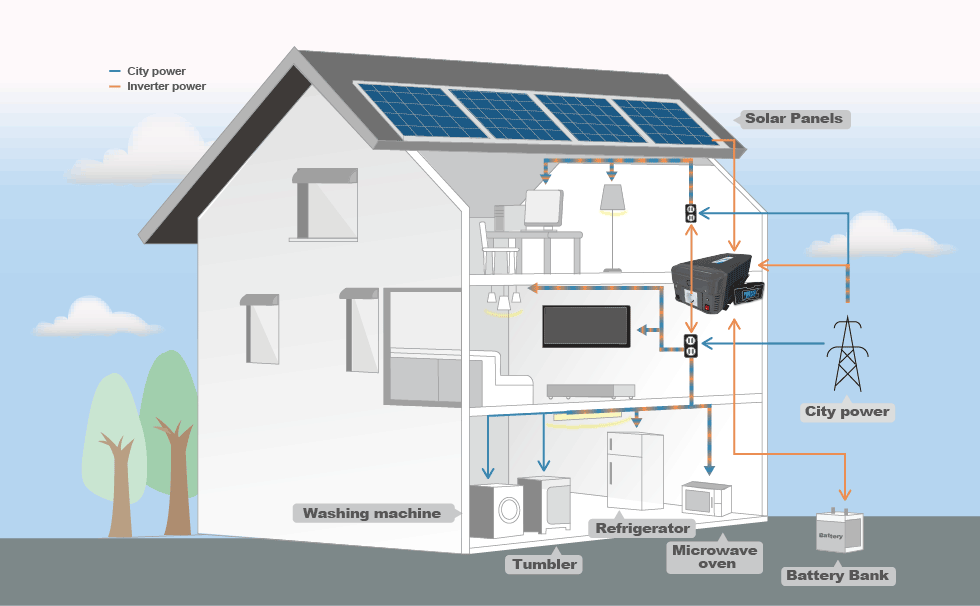

Suitable for
/(E)HT-PV-135-4.png)
Model No.:
HT-PV-135
HT-PV-200
HT-PV-220
ELECTRICAL CHARACTERISTICS
Maximum Power Rating (Pmax):
135W±5%
200W±5%
220W±5%
Voltage at Pmax (Vpm):
17.28V
26.16V
28.79V
Current at Pmax (Ipm):
7.26A
7.72A
7.67A
Open-Circuit Voltage (Voc):
22.14V
33.62V
36.72V
Short-Circuit Current (Isc):
8.16A
8.27A
8.10A
Operating Temperature:
-40 to 85℃
Maximum System Voltage:
1000VDC (600VDC in US)
Maximum Series Fuse Rating:
10A
Module Efficiency:
13.20%
13.33%
13.26%
MECHANICAL CHARACTERISTICS
Solor Cell:
Polycrystalline Silicon
No. of Cell:
36 (4x9)
54 (6x9)
60 (6x10)
Dimensions (mm):
1500x682x42
1500x1000x42
1659x1000x42
Weight:
14 kgs
19 kgs
21 kgs
Junction Box:
IP65 Junction Box (TÜV Certified)
TEMP. CHARACTERISTICS
Nominal Operating Cell:
44.2℃
Temperature (NOCT):
44.2℃
Temp. coefficient of Pmax:
-0.52%℃
Temp. coefficient of Voc:
-0.37%℃
Temp. coefficient of Isc:
+0.07%℃
PERFORMANCE WAEEANTY
90% Output:
10Years
80% Output:
20Years
※ Note: Specifications subject to change without notice.
