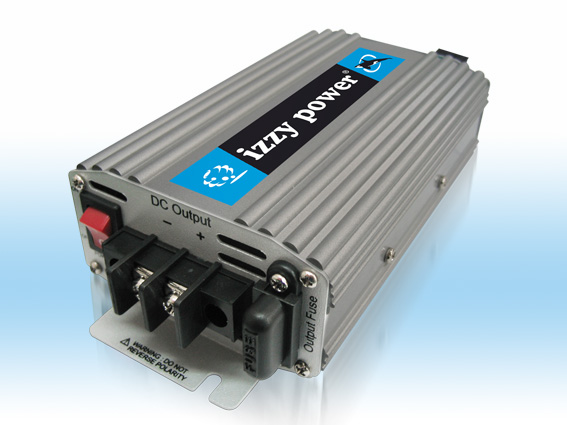

DC TO DC CONVERTER
Design feature
(1) Conversion to the right voltage.
(2) Stabilisation of the voltage.
(3) Compact size design.
(4) Efficient cooling (thermal controlled) fan.
(1) Conversion to the right voltage.
(2) Stabilisation of the voltage.
(3) Compact size design.
(4) Efficient cooling (thermal controlled) fan.
Overview

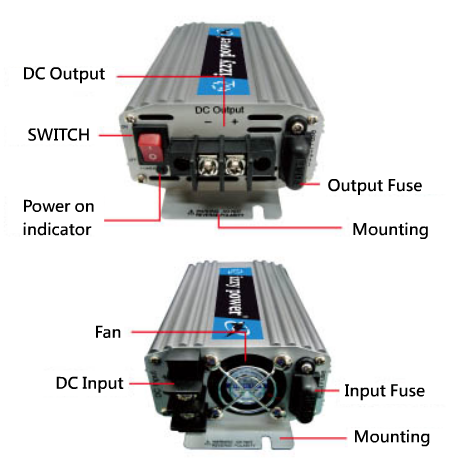

/(E)HT-D-17-1.png)
Certifcate
/EMC.png)
Suitable for

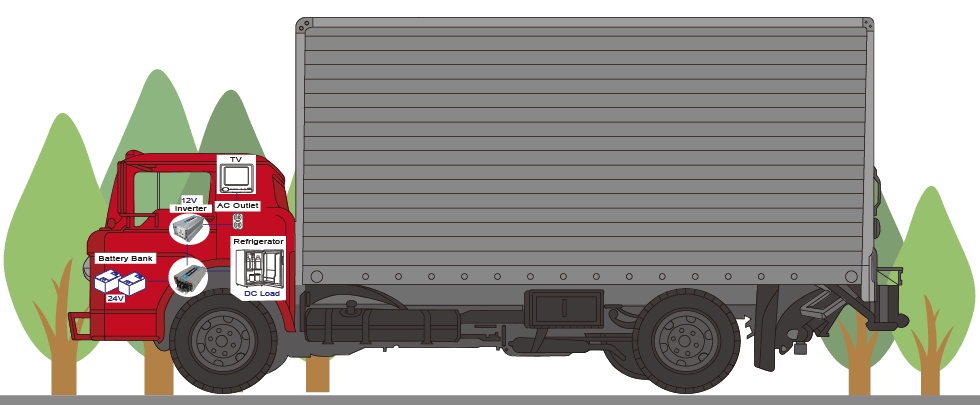

/(E)HT-D-17-3.png)
Model No.:
HT-D-17
INPUT SPECIFICATIONS
Nominal input voltage:
24V
Input range:
18~33VDC (±1V)
No load consumption:
0.03A (±0.5%)
OUTPUT SPECIFICATIONS
Nominal voltage:
12.5V (±0.5V)
Voltage range:
12V~13V (±0.5V)
Ripple:
<1%
Maximum power:
25A (±1A)
Nominal power:
17A (±1A)
PROTECTION
Over current:
Yes
Over heat:
Yes
SAFETY & EMC
EMC:
EN61000-6-4 : 2007, CISPR 11 : 2003 Class B,
EN61000-6-2:2005, IEC 61000-4-2:1955+A1:1998+A2:2000
IEC61000-4-3:2008, IEC61000-4-8:1993+A1:2000
EN61000-6-2:2005, IEC 61000-4-2:1955+A1:1998+A2:2000
IEC61000-4-3:2008, IEC61000-4-8:1993+A1:2000
LVD:
Compliance to EN60950
GENERAL SPECIFICATIONS
Working temp.:
-15℃~+40℃
Working humidity:
20%~90% RH non-condensing
Storage temp., humidity:
-30~+70℃ / -22℉~158℉, 10~95% RH
Temp. coefficient:
±0.05%℃ (0~55℃)
Effciency:
>85%
Dimension (LxWxH):
178x89x50 mm
Net weight:
0.6 kgs
※ Note: Specifications subject to change without notice.
